VENTURA PS 1.0 PLUG SLIDER – DOORSHAFT SERVICE KIT

VENTURA PS 1.0 PLUG SLIDER – DOORSHAFT SERVICE KIT
TDS Part Number: KIT602
VENTURA PS 1.0 – DOORSHAFT SERVICE KIT

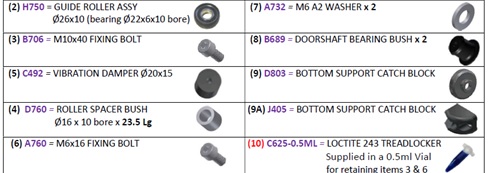

LISTED IN THE KIT IS:
(2) H750 = GUIDE ROLLER ASSY
(3) B706 = M10x40 FIXING BOLT
(4) D760 = ROLLER SPACER BUSH Ø16o/d x Ø10i/d x 23.5 Lg
(5) C492 = VIBRATION DAMPER Ø20x15
(6) A760 = M6x16 FIXING BOLT
(7) A732 = M6 A2 WASHER x 2
(8) B689 = DOORSHAFT BEARING BUSH x 2
(9) D803 = BOTTOM SUPPORT CATCH BLOCK
(9A) J405 = BOTTOM SUPPORT CATCH BLOCK
(10) C625-0.5 = LOCTITE 243 Supplied in a 0.5ml Vial for retaining items 3 & 6



OE References
ManufacturerReference
Transport Door Solutions KIT602

Related Products

B689 - PS SHAFT BEARING BUSH ID=16.5. OD=21-23 LG=24. F= Ø 30 X 3.0 (PS/RS DOORSHAFT)-(6690800N33)-(99.717)-(162088)-(61PD38054AT)-(PSV003389)-(PSV/06/515)-(1780793)-(1780493)-(936435)-(DED-00204)
B689

B689 - PS SHAFT BEARING BUSH ID=16.5. OD=21-23 LG=24. F= Ø 30 X 3.0 (PS/RS DOORSHAFT)

ManufacturerReference
Ventura B689

D760 - PS1 ROLLER SPACER BUSH 16/10 L23.5-(6690816D31)-(42-5145-760)-(99.739)-(PSV003752)-(1780494)-(934299)-(DED-00262)
D760

D760 - PS1 ROLLER SPACER BUSH 16/10 L23.5

ManufacturerReference
Ventura D760

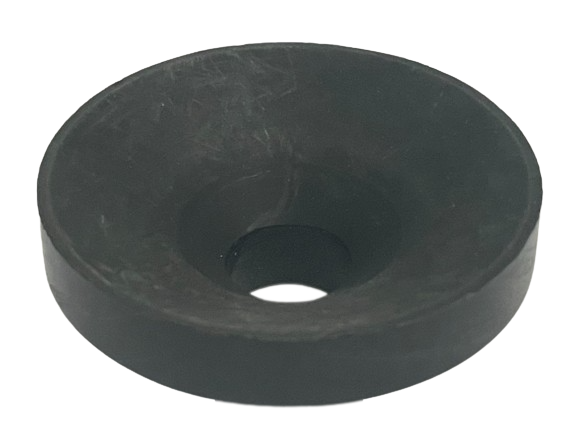

D803 - PS CATCH BLOCK-(A03869)-(6690817D31)-(99.94)-(162055)-(33-11182#B)-(PSV/06/085)-(1780498)-(939363)-(CM003/508)-(DED-00206)
D803

D803 - PS CATCH BLOCK

ManufacturerReference
Ventura D803

H750 - PS/RS Ø 26 ROLLER ASSEMBLY-(A01670)-(42-5145-755A)-(66903320)-(99-88)-(160293)-(61PM40022AG)-(MELLOR - ROL.001)-(PSV003391)-(PSV/06/261)-(1780495)-(1780496)-(934298)-(CM003/75)-(DED-00257)
H750

H750 - PS/RS Ø 26 ROLLER ASSEMBLY

ManufacturerReference
Ventura H750

J405 - PS CATCH BLOCK BOTTOM SUPPORT-(6690803D252 )-(61PD46014AD)-(32455002#B)
J405

J405 - PS CATCH BLOCK BOTTOM SUPPORT

ManufacturerReference
Ventura J405

D545 - PS CATCH PIN PLATE LH-(42-5145-025)-(99.61)-(PSV/06/151)
D545

D545 - PS CATCH PIN PLATE LH

ManufacturerReference
Ventura D545

D546 - PS CATCH PIN PLATE RH-(42-5145-017)-(99.611)-(PSV/06/152)
D546

D546 - PS CATCH PIN PLATE RH

ManufacturerReference
Ventura D546

VE6813 - PS CATCH PIN PLATE RH-(6690821D31)-(99.612)-(162057)-(45-11264#B)-(PSV/06/154)-(952054)-(DED-00383)
VE6813

VE6813 - PS CATCH PIN PLATE RH

ManufacturerReference
Peters VE6813
Ventura E096

VE6811 - PS CATCH PIN PLATE LH-(6690820D31)-(99.613)-(162058)-(45-11263#B)-(PSV/06/153)-(1780517)-(952055)-(DED-00384)-(DED-00374)
VE6811

VE6811 - PS CATCH PIN PLATE LH

ManufacturerReference
Peters VE6811
Ventura E097

C924 - PS CATCH PIN-(99.853)-(PSV/06/259)-(DED-00393)
C924

C924 - PS CATCH PIN

ManufacturerReference
Ventura C924

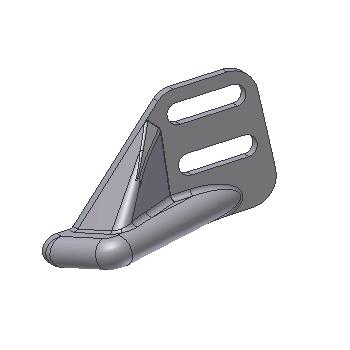

I275 - PS CATCH WEDGE LH-(6690800D252)-(61PD40041A9)-(PSV/06/449)
I275

I275 - PS CATCH WEDGE LH

ManufacturerReference
Ventura I275

I276 - PS CATCH WEDGE RH-(6690801D252)-(PSV/06/450)
I276

I276 - PS CATCH WEDGE RH

ManufacturerReference
Ventura I276

C492 - IG VIBRATION DAMPER 20 X 15-(42-5145-166)-(99.718)-(162052)-(61PD46022AF)-(PSV/06/265)-(1780300)-(DED-00138)
C492

C492 - IG VIBRATION DAMPER 20 X 15

ManufacturerReference
Ventura C492

A760 - BOLT M6x16 ZP-(42-5145-761)-(99-737)-(DED-00196)
A760

A760 - BOLT M6x16 ZP

ManufacturerReference
Ventura A760

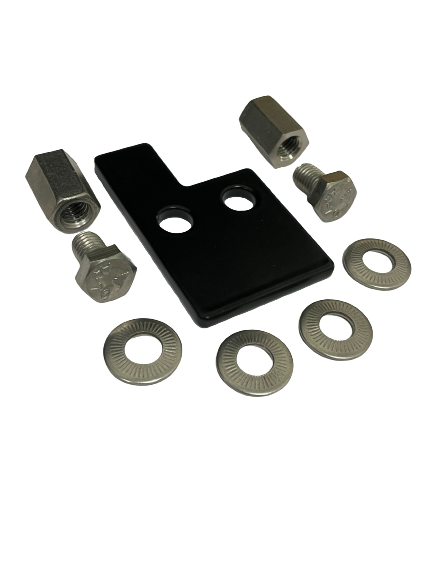

M801 - PS1 LEAF GUIDE ROLLER SECURING KIT
M801

M801 - PS1 LEAF GUIDE ROLLER SECURING KIT

ManufacturerReference
Ventura M801

B706 - PS1 GUIDE ROLLER SECURE BOLT M10x40-(99-738)-(157530)-(61PM46003AM)-(939412)-(DEV-00275)
B706

B706 - PS1 GUIDE ROLLER SECURE BOLT M10x40

ManufacturerReference
Ventura B706

A732 - WASHER DIN125A M6 A2
A732

A732 - WASHER DIN125A M6 A2

ManufacturerReference
Ventura A732

C625-0.5ML - LOCTITE 243 THREADLOCKER (0.5ML VIAL)
C625-0.5ML

C625-0.5ML - LOCTITE 243 THREADLOCKER (0.5ML VIAL)

ManufacturerReference
Transport Door Solutions C625-0.5ML
Ventura C625
