VENTURA IG4 INWARD GLIDER - DOORSHAFT SET SERVICE KIT
VENTURA IG4 INWARD GLIDER - DOORSHAFT SET SERVICE KIT
TDS Part Number: KIT607

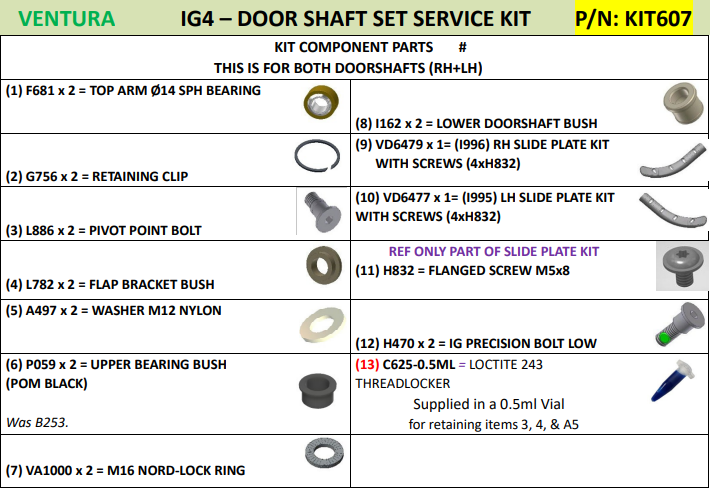

VENTURA IG4 INWARD GLIDER DOORSHAFT SET SERVICE KIT
# COVERS RH + LH LEAVES

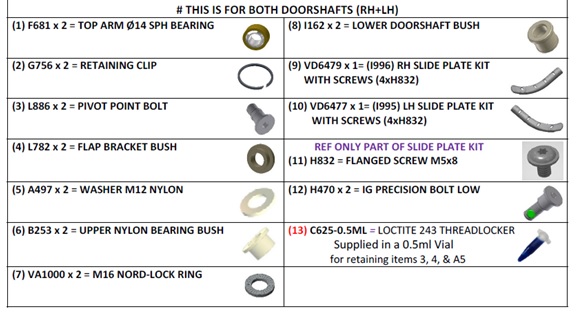

CONTENTS:
(1) F681 = TOP ARM SPH BEARING x2
(2) G756 = RETAINING CLIP x2
(3) L886 = LOWER PIVOT BOLT x2
(4) L782 = FLAP BRACKET BUSH x2
(5) A497 = WASHER M12 NYLON x2
(6) B253 = UPPER NYLON BUSH x2
(7) VA1000 = M16 NORD LOCK RING x2
(8) I162 = LOWER DOORSHAFT BUSH x2
(9) VD6479 = RH SLIDE PLATE KIT x2
(10) VD6477 = LH SLIDE PLATE KIT x2
(11) H470 = IG TOP PRECISION BOLT x2
(12) C625.05ML = LOCTITE 243 THREADLOCK

OE References
ManufacturerReference

Related Products

B253 - IG Ø16 NYLON BEARING BUSH ID=16 X 22 OD=22F= Ø30 X 2.5 (DOORSHAFT TOP ARM)-(42-5145-175)-(99.601)-(116752)-(272591)-(6690807N00)-(PSV/06/078)-(939822)-(DEV-00006)
B253

B253 - IG Ø16 NYLON BEARING BUSH ID=16 X 22 OD=22F= Ø30 X 2.5 (DOORSHAFT TOP ARM)

ManufacturerReference
Ventura B253
P059

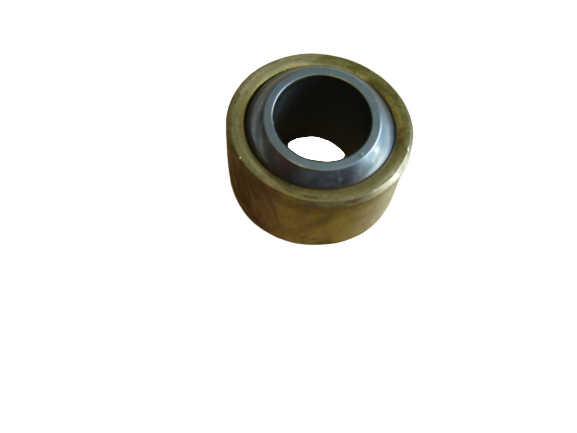

F681 - IG Ø14 PLAIN SPH BEARINGDIN648 GE14ID=14. OD=28 X 13.35(DOORSHAFT TOP ARM)-(6690813F75)-(CNSP0375)-(148523)-(148523)-(61PD40068AH)-(PSV/06/517)-(1780355)-(944410)-(DEV-00007)
F681

F681 - IG Ø14 PLAIN SPH BEARINGDIN648 GE14ID=14. OD=28 X 13.35(DOORSHAFT TOP ARM)

ManufacturerReference
Ventura F681

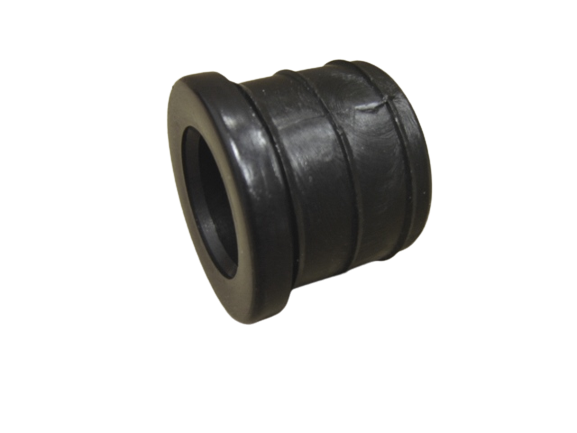

I162 - IG4 SHAFT BEARING BUSH-(A03778)-(6690817F75)-(82-186)-(148525)-(61PD38055AQ)-(PSV/06/511)-(PSV201059 )-(936679)-(DEV-00185)
I162

I162 - IG4 SHAFT BEARING BUSH

ManufacturerReference
Ventura I162

L782 - IG4 Ø12.35 NYLON BEARING BUSH MFM-(A05633)-(6690816F75)-(98.963)-(177063)-(262302)-(61PD46023AC)-(944496)-(DEV-00179)
L782

L782 - IG4 Ø12.35 NYLON BEARING BUSH MFM

ManufacturerReference
Ventura L782

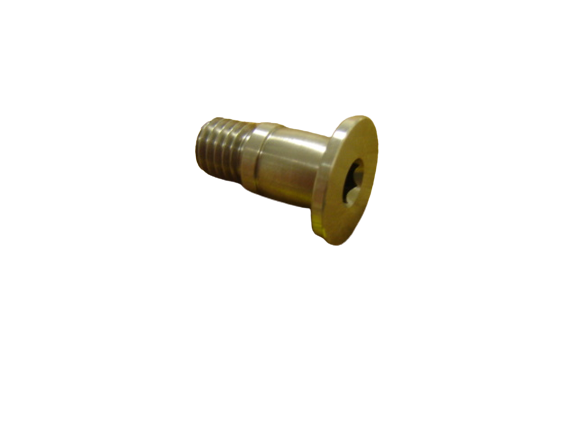

L886 - IG4 PIVOT POINT BOLT SHORT M10-(A05632)-(6690814F75)-(98-965)-(177062)-(945922)-(DEV-00170)
L886

L886 - IG4 PIVOT POINT BOLT SHORT M10

ManufacturerReference
Ventura L886

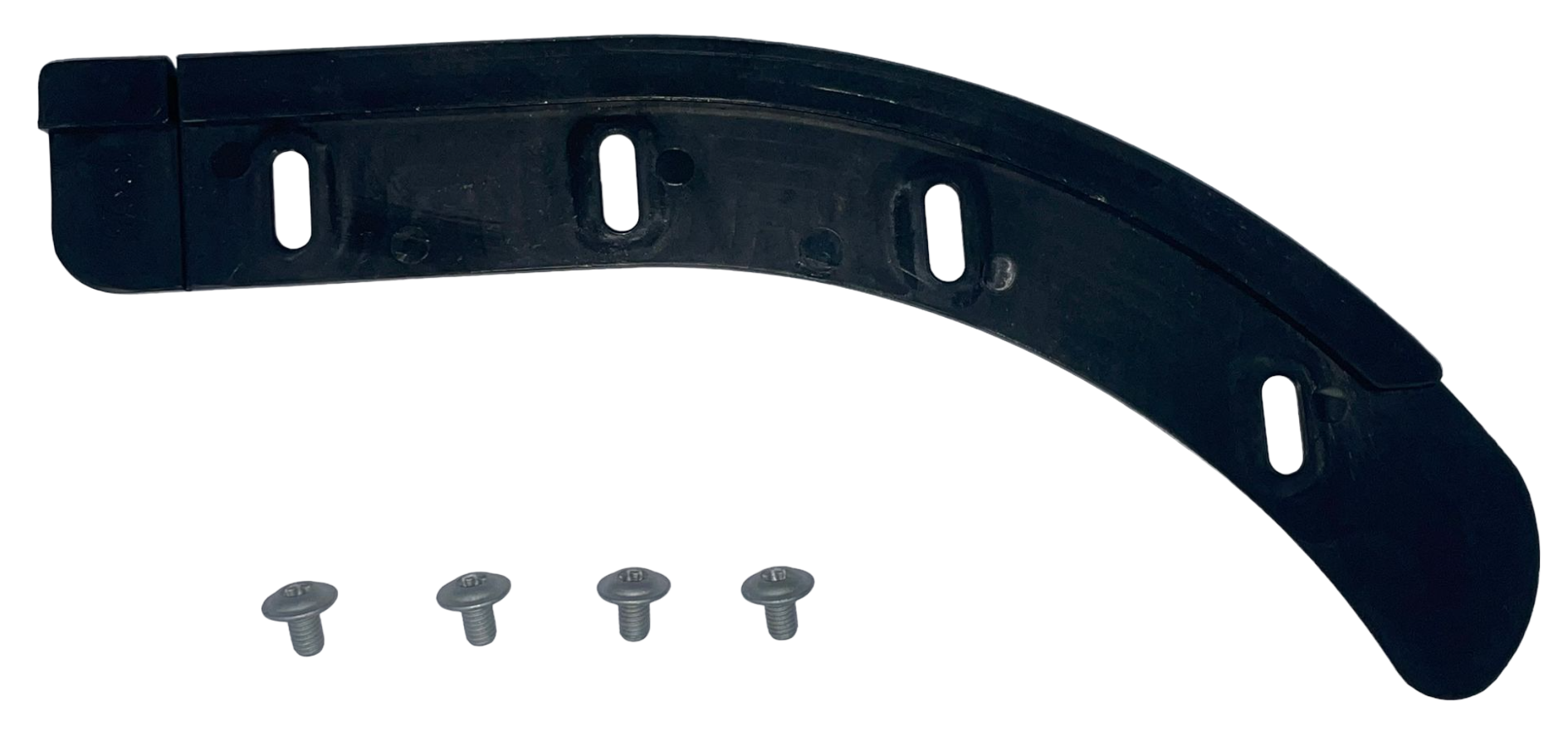

VD6477 - IG SLIDE PLATE LH EXTENDED + 4x H832 SCREW KIT-(AB0456)-(6690807D177)-(50-963)-(116765)-(267087)-(PSV/06/453)-(939472)-(DEV-00182)
VD6477

VD6477 - IG SLIDE PLATE LH EXTENDED + 4x H832 SCREW KIT

ManufacturerReference
Ventura I995
VD6477

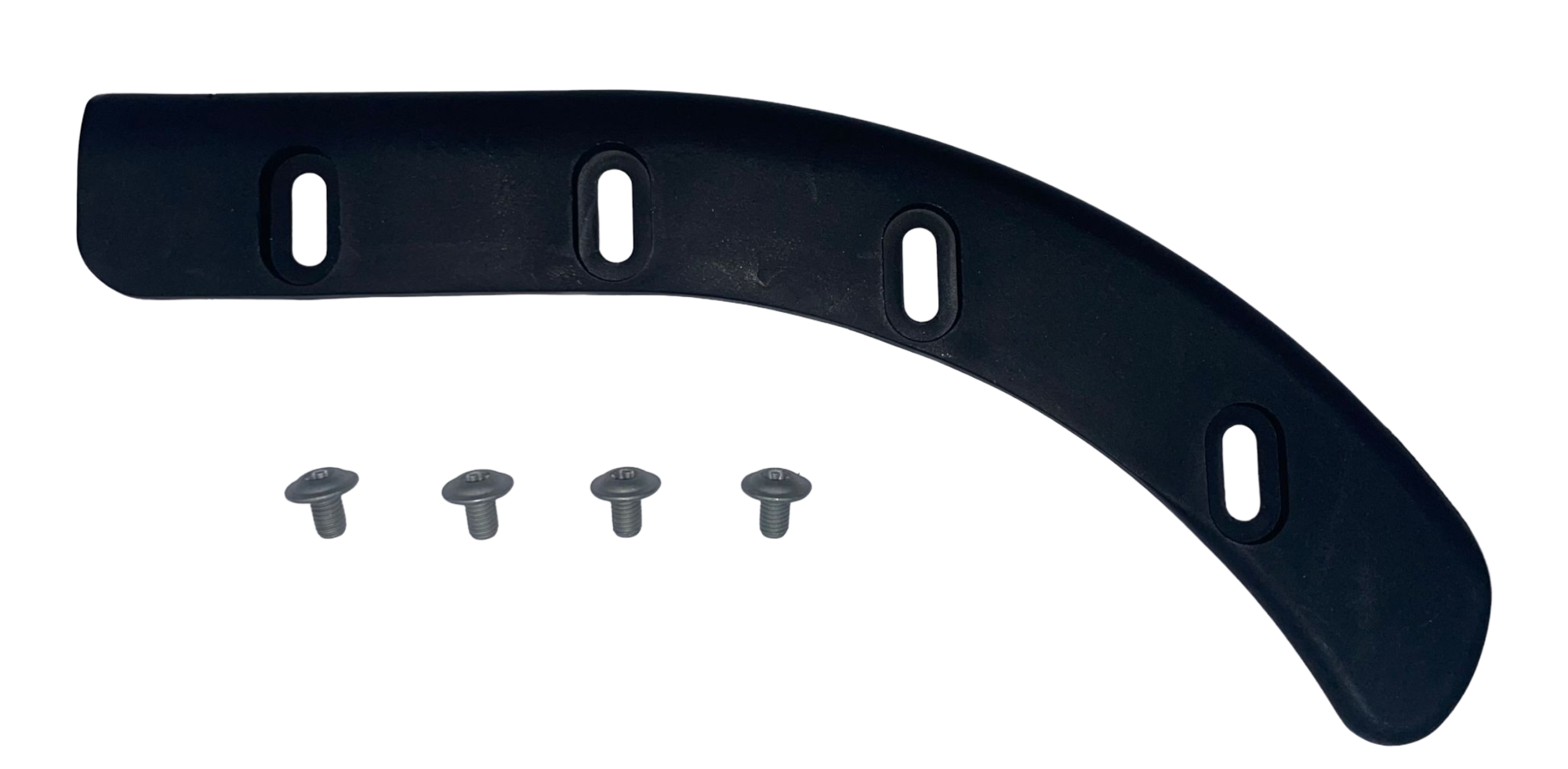

VD6479 - IG SLIDE PLATE RH EXTENDED + 4x H832 SCREW KIT-(A05635)-(AB0455)-(6690808D177)-(50-964)-(116766)-(267088)-(61PD38074AL)-(PSV/06/454)-(938457)-(DEV-00167)
VD6479

VD6479 - IG SLIDE PLATE RH EXTENDED + 4x H832 SCREW KIT

ManufacturerReference
Ventura I996
VD6479

H470 - IG PRECISION BOLT (TOP ARM)-(xA03814)-(6600030N33)-(99-662)-(148522)-(61PM46011A*)-(949098 )-(CM003/261)-(FXM-00128)
H470

H470 - IG PRECISION BOLT (TOP ARM)

ManufacturerReference
Ventura H470

A497 - NYLON WASHER DIN 125A M12 -(6690815F75)-(61PD46011AM)-(DEV-00166)
A497

A497 - NYLON WASHER DIN 125A M12

ManufacturerReference
Ventura A497

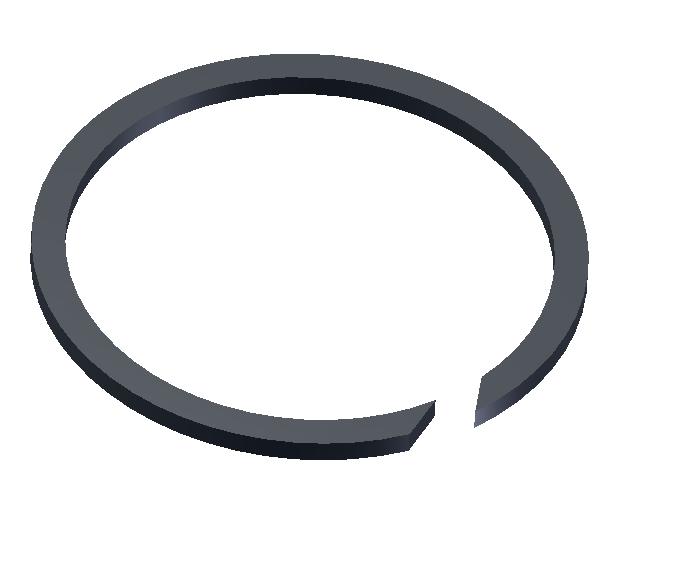

G756 - RETAINING CLIP-(A03593)-(6690800N226)-(162094)-(951340)-(DED-00501)
G756

G756 - RETAINING CLIP

ManufacturerReference
Ventura G756

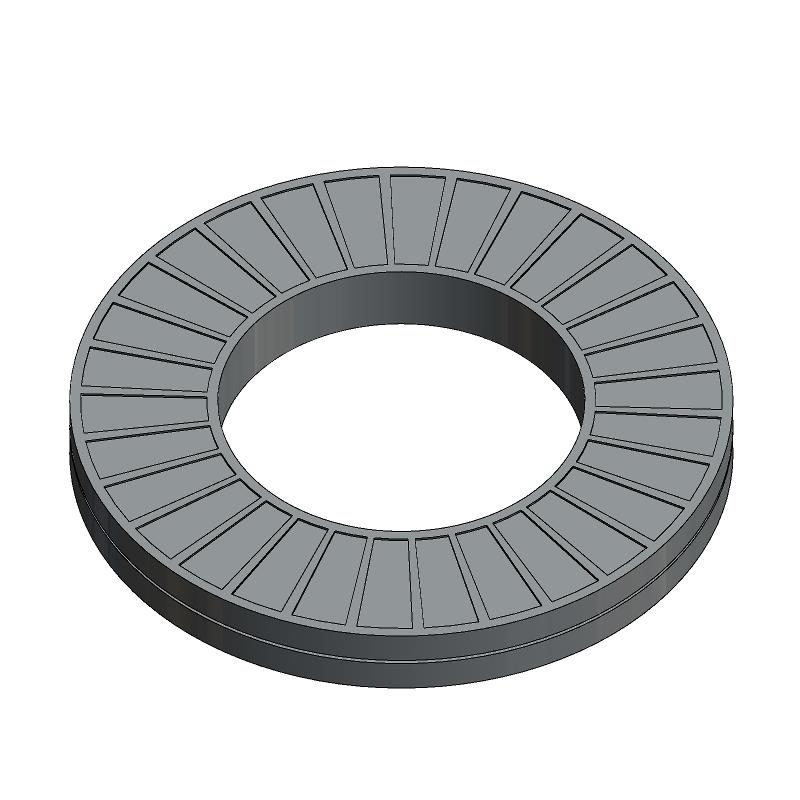

VA1000 - M16 NORD-LOCK RING-(A05629)-(6690822F45)-(DEV-00840)
VA1000

VA1000 - M16 NORD-LOCK RING

ManufacturerReference
Ventura VA1000
H114

C625-0.5ML - LOCTITE 243 THREADLOCKER (0.5ML VIAL)
C625-0.5ML

C625-0.5ML - LOCTITE 243 THREADLOCKER (0.5ML VIAL)

ManufacturerReference
Transport Door Solutions C625-0.5ML
Ventura C625
